Product Name: Side Rolling Shutter Door
Fabric Material: Glass Fiber + PVC
Fire Rating: National Standard Grade B1
Track Material: Aluminum Alloy
Light Blocking Rate: 50%-100% Light Blocking Rate
Wind Resistance: Capable of resisting winds up to Force 7
Control Methods: Voice Control, Wireless Remote Control
|
|
|
|
|
|
|
|
| Provide sunshade | Wind protection | Fast passage | Mosquito prevention | Non-flammability | Scenic transparency | Privacy protection | Support customization |
Side Rolling Shutter Door
| Side mounted windproof roller blinds are a device for indoor shading, shading, and privacy protection. Adopting lateral tracks reduces space waste and is more suitable for situations with limited space. The quick closure method allows for quick passage, preventing mosquitoes from entering and avoiding convection of hot and cold air. The windproof track installation design can better resist lateral wind force and has stronger windproof performance. |
Product Mix
1.Upper Cover Shell | 8.End Plate | 15.Motor |  |
| 2.Drawbar Beam | 9.Zipper track with reversed | 16.Runner | |
| 3.Gas Pressure Rod | 10.Fabric | 17.Front cover | |
| 4.Steel wire | 11.Sealing of reversing pulley | 18.Rear cover | |
| 5.Side rail | 12.Tail plug | 19.Slider | |
| 6.Rubber strip | 13.Diameter increase | 20.Fabric clamp | |
| 7.End Plate Insert | 14.Coiled tubing |
Product Features
| Self-extinguishing when away from fire When ignited with an open flame, it does not self-ignite or support combustion. |  | Resistant to winds up to Force 7 No need to worry about curtains being blown away in corridors or on balconies. |
 | Waterproof tubular motor Excellent sealing performance, capable of stable operation in humid or underwater environments. |  | Patented gas spring structural design The side track hides the traction wire, and the tension from the gas spring enhances the smoothness of the fabric, making it less prone to sagging and extending its service life. |
 | Effectively blocks the entry of ultraviolet rays, keeping heat out of the indoors and protecting indoor furniture from fading due to UV exposure. In summer, it reduces indoor temperature and air conditioning energy consumption. |  | Incorporating side track zipper (or guide wire) technology enhances wind resistance. With no gaps on both sides, there is no light leakage, resulting in more uniform indoor lighting. |  | It can be connected to multifunctional automated control systems such as wind, rain, and light sensors, enabling intelligent control. | ||
 | The track installation is aesthetically pleasing, featuring a front-and-back separable track design with concealed installation for easier removal and installation. |  | The roller shutter features a see-through function, allowing views of the outdoors while preventing outsiders from seeing inside, thus serving the purpose of privacy protection. |  | The track is equipped with built-in buffer spring wires to keep the fabric taut and wrinkle-free, combined with an anti-detachment zipper structure to effectively resist strong winds. | ||
 | When the outdoor roller shutter is installed inside the opening, there are no gaps around it, and it can also serve as an insect-proof screen. |  | Transitioning from indoors to outdoors, the unified and orderly design enhances the aesthetic appeal of the curtain wall. |  | The unique design concept of the cover box features fabric scratch protection and automatic fabric cleaning functions. |
Application Dimensions
Enclosure Specifications | Width (mm) | Height (mm) | Instructions | Enclosure Specifications | Width (mm) | Height (mm) | Instructions |
 | 4000 2500 900 | 4500 3500 500 | Maximum size Recommended size Minimum size |  | 3000 2500 900 | 3500 3000 500 | Maximum size Recommended size Minimum size |
Fabric Parameters
|
|
|
|
Porosity 4% | Fabric Material 75%Polyvinyl Chloride+25%Glass Fiber | Thickness 0.93mm（+/-5%） |
Weight per Square Meter 655g/㎡（+/-5%） | Color Fastness ISO 105 B02 Level 8 | Phenolic Yellowing Color Fastness Level 4，ISO 105 X18:2007 Standard |
| Mold-Proof Treatment Compliant with ASTM E 2180-18 Standard | Formaldehyde-Free Compliant with GB18401-2010 Standard | VOC-Free Test HJ 507-2009 Standard |
Eco-Friendly GREENGUARD，OEKO-TEX， China Environmental Labeling Product Certification | Fire Resistance Rating a. NFPA 701-2010 Standard b. California US Title 19 Fire Retardant Standard c. Domestic Class B1 (GB 17591-2006 Fire Retardant Standard) | |

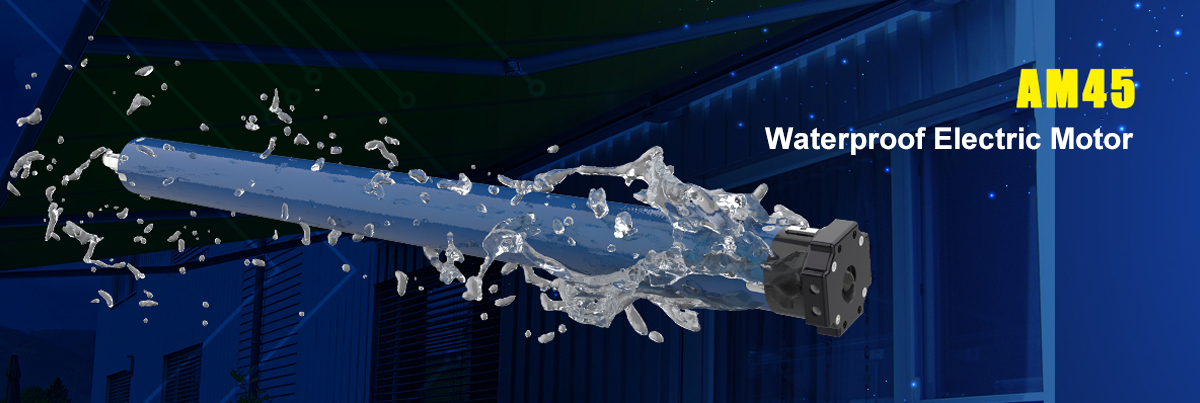

Waterproof tubular motor
Rated Torque 50N.m | Limit Adjustment Accuracy ≤18° | Protection Grade IP65 |
Maximum Number of Revolutions 55 Revolutions | Protection Temperature ≥140℃ | Insulation Class H |
Braking Force 75N.m | Rated Speed 12rpm | Repeated Positioning Accuracy ±5° |
| Noise Level ≤50dB | Rated Operating Time 4min | Operating Temperature -20~55℃C |
Profile Parameters
 Cover Shell 145 Material: 6063 Aluminum Alloy Specifications: 145*145mm Thickness: 2.4mm |
Cover Shell 125 Material: 6063 Aluminum Alloy Specifications: 125*125mm Thickness: 1.5mm |
Front Passage Material: 6063 Aluminum Alloy Specifications: 56*91mm Thickness: 2.0mm |
Side Rail Material: 6063 Aluminum Alloy Specifications: 51*60mm Thickness: 1.7mm |
Front Cover/Housing Material: 6063 Aluminum Alloy Specifications: 65*66mm Thickness: 2.4mm |
End Plate 145 Material: Die-cast Aluminum Specifications: 145*145mm Thickness: 6.3mm |
End Plate 125 Material: Die-cast Aluminum Specifications: 125*125mm Thickness: 5.3mm |
Front Passage Material: Die-cast Aluminum Specifications: 56*90mm |
Side Rail Closure Material: 6063 Aluminum Alloy Specifications: 51*60mm |
63/85 Double-Layer Coiled Tubing Material: 6063 Aluminum Alloy Specifications: φ63/φ85 Thickness: 1.8mm |
Rubber strip Material: Rigid PVC Specifications: 10*32mm |
Slider insert Material: Die-cast Aluminum Specifications: 70*62mm |
Steel Wire Latch Material: 304 Stainless Steel Specifications: 15*10mm |
Steel Wire Guide Wheel Material: Stainless Steel Specifications: φ33 |
Steel wire rope Specifications:φ1.5 |
Diameter Reducer Material: Nylon Injection Molded |
Motor Impeller Material: Nylon Injection Molded |
Tail Plug Material: Nylon Injection Molded + Stainless Steel |
Fabric Clamp Material: Nylon Injection Molded Specifications: 44*87*29mm |
