Product Name: Electric Windproof Roller Blind
Fabric Material: Polyester Fiber + PVC
Fire Rating: National Standard Grade B1
Track Material: Aluminum Alloy
Light Blocking Rate: 50%-100% Light Blocking Rate
Wind Resistance: Capable of resisting winds up to Force 7
Control Methods: Voice Control, Wireless Remote Control
|
|
|
|
|
|
|
|
| Shade | Ventilated | Rainproof | Fire retardant | Mold-resistant | View-through | Protect privacy | Upport customization |
Windproof Roller Blind
| Windproof roller blinds are an effective external sunshade product with windproof edge rails to effectively resist strong winds. The electric windproof roller shutter with rich colors and overall uniformity can beautify the appearance of building curtain walls and adjust natural light. Not only used for windproof, but also commonly used for theft prevention, privacy protection, shading, and improving indoor comfort. |
Product Mix
1. Upper cover shell 2. Lower cover shell 3. End Plate 4. Motor 5. Reelpipe 6. Side rail assembly | 7. Zipper slide 8. Spring wire 9. Fabric 10. Lower beam 11. Side rail sealing 12. Tail plug | 13. Diameter reduction 14. End disk plugin 15. Zipper track with reversed/inverted profile 16. Sealing the lower beam |
| |

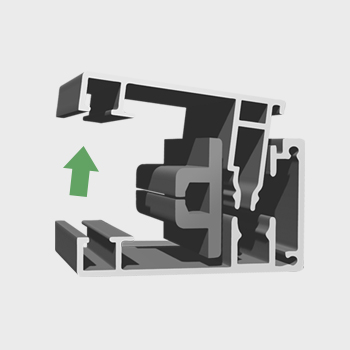

| Innovative separable track No screw design embodying the beauty of simplicity.Front-and-back separable track, screw-free installation, featuring sleek lines that accentuate the elegance of your home, made of thickened aluminum material for robustness and rust resistance. |
| Easy assembly and disassembly, for a more flexible life. Easy to assemble and disassemble without complex tools, adjust as you wish, and enjoy the convenience. |
 | Effectively blocks the entry of ultraviolet rays, keeping heat out of the indoors and protecting indoor furniture from fading due to UV exposure. In summer, it reduces indoor temperature and air conditioning energy consumption. |  | Incorporating side track zipper (or guide wire) technology enhances wind resistance. With no gaps on both sides, there is no light leakage, resulting in more uniform indoor lighting. |  | It can be connected to multifunctional automated control systems such as wind, rain, and light sensors, enabling intelligent control. | ||
 | The track installation is aesthetically pleasing, featuring a front-and-back separable track design with concealed installation for easier removal and installation. |  | The roller shutter features a see-through function, allowing views of the outdoors while preventing outsiders from seeing inside, thus serving the purpose of privacy protection. |  | The track is equipped with built-in buffer spring wires to keep the fabric taut and wrinkle-free, combined with an anti-detachment zipper structure to effectively resist strong winds. | ||
 | When the outdoor roller shutter is installed inside the opening, there are no gaps around it, and it can also serve as an insect-proof screen. |  | Transitioning from indoors to outdoors, the unified and orderly design enhances the aesthetic appeal of the curtain wall. |  | The unique design concept of the cover box features fabric scratch protection and automatic fabric cleaning functions. |

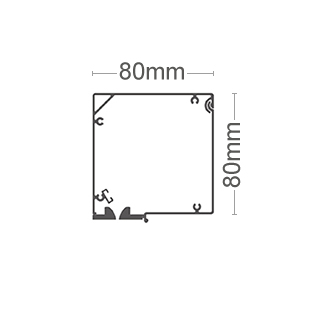

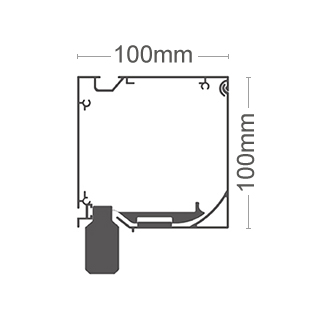

Enclosure Specifications | Width (mm) | Height (mm) | Instructions | Enclosure Specifications | Width (mm) | Height (mm) | Instructions |
 | 6600 900 | 5500 900 | Maximum size Minimum size |  | 5500 900 | 4500 500 | Maximum size Minimum size |
 | 3800 800 | 2580 500 | Maximum size Minimum size |  | 2200 800 | 2200 500 | Maximum size Minimum size |
Fabric Parameters
Porosity 0%、1%、4%、5%、10%、20%、30% | Fabric Material polyester fiber / glass fiber | Colour Fastness IOS 105 B02 6-7Level |
Flame Retardant Class GB17591 B1 | Environmental Protection GREENGUAD OEKO-TEX，China Environmental Label Product Certification | |
Profiles and Accessories

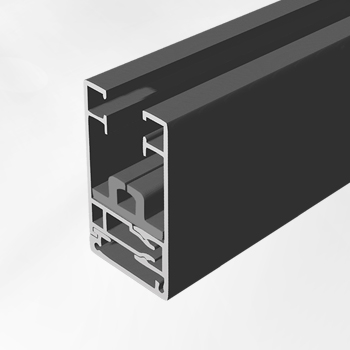

 Side Upper Rail Specification: 33*56.8mm Wall Thickness: 2.0mm |
Side Lower Rail Wall Thickness: 1.5mm |
Side Rail Closure Material: Nylon Injection Molded |
Side Rail Rubber Strip Material: PVC + Nylon |
Spring Wire Material: Stainless Steel |
Front Cover Shell Linear Weight: 1.04kg/m Wall Thickness: 1.3mm |
Rear Cover Shell Linear Weight: 0.668kg/m Wall Thickness: 1.3mm |
End Plate Material: Die-cast Aluminum |
Coiled Tube Linear Weight: 1.21kg/m Wall Thickness: 1.6mm |
Motor Bracket Material: Galvanized Iron Plate |
Lower Beam Specification: 50*28mm / 55*28mm Wall Thickness: 1.5mm |
Lower Beam Closure Material: Nylon Injection Molded |
Reducer Material: Nylon Injection Molded |
Tail Plug Material: Nylon Injection Molded + Stainless Steel |
Runner Wheel Material: Nylon Injection Molded |
Case Presentation
|
|  |
|  |  |
 |
|  |
